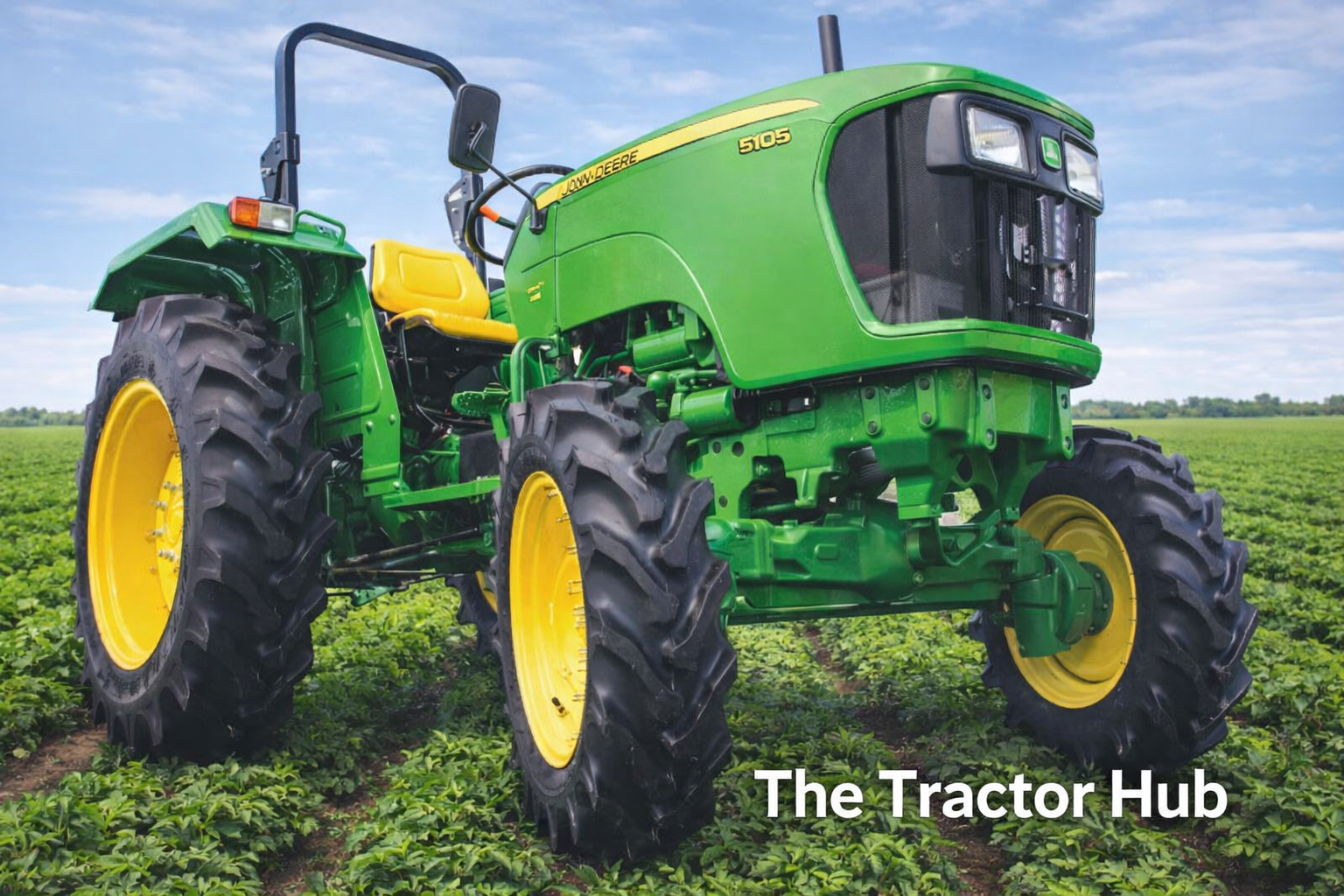

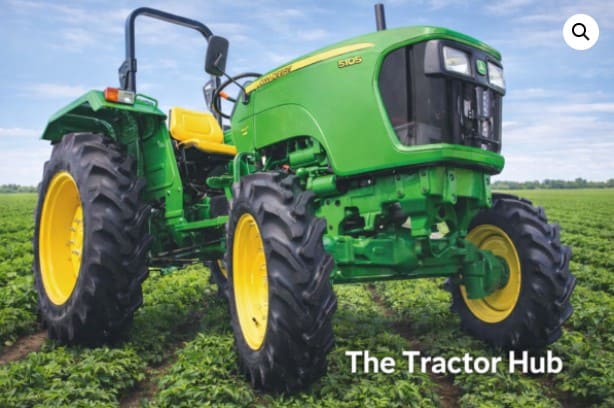

Jhon deere 5105 4WD
₹ From. 7.05 - 8.02 Lakh* ( approx )
Model - - - Jhon deere 5105 4WD
Price - - - ₹ From. 7.05 - 8.02 Lakh* ( approx )
Horse Power (HP) - - - 40 hp
Steering - - -Power steering
Cubic Capacity (CC) - - - 2900
Brakes - - - Oil brakes
Wheel Drive - - - 4 WD
Clutch - - - Dual / Double Clutch
Jhon deere 5105 4WD is a powerful 40 HP tractor with 170 NM max torque designed for modern farming operations. With its 4-wheel drive system, 2100 RPM engine, and 1600 kg lifting capacity, this tractor delivers excellent traction and efficiency in both dry and wet land cultivation. Its durable gearbox, advanced hydraulics, and reliable engine make it a perfect choice for farmers looking for performance and productivity. (Jhon deere 5105 2WD)
Wheel drive
4 WD
Lifting capacity
1600 Kg
Brakes
Oil brakes
Steering
Power steering
Clutch
Dual / Double Clutch
Ground Clearance
420 MM
Jhon deere 5105 4WD Overview
John Deere 3029D engine–powered 40 HP tractor is designed to deliver reliable performance, fuel efficiency, and durability for a wide range of agricultural operations. With a rated output of 29.8 kW at 2100 RPM, this tractor is well-suited for medium to heavy-duty farming tasks such as ploughing, cultivation, hauling, and PTO-driven applications.
Engine & Performance
At the heart of the tractor is a naturally aspirated, coolant-cooled engine equipped with an overflow reservoir for efficient temperature management. The dry-type dual-element air filter ensures cleaner air intake, enhancing engine life and reducing maintenance needs. The engine features a wet liner design, which improves cooling efficiency and extends durability. A high torque reserve allows the tractor to maintain performance even under heavy load conditions, making it ideal for demanding fieldwork.
Transmission & Speed
The tractor comes with a collarshift gearbox offering 8 forward and 4 reverse gears, providing flexibility and control across different farming operations. It supports a forward speed range of 2.84 to 31.70 km/h and reverse speeds from 3.74 to 13.52 km/h. The availability of single or dual clutch options enhances operational convenience, especially during PTO applications and gear shifting.
Hydraulics & PTO
Equipped with a strong hydraulic system, the tractor offers a lifting capacity of up to 1600 kg, suitable for implements like rotavators, cultivators, and ploughs. The Category II three-point linkage ensures compatibility with a wide range of implements. It also features Automatic Depth and Draft Control (ADDC), allowing precise implement handling. The independent PTO with 6 splines operates at 540 RPM, ensuring efficient power delivery for PTO-driven equipment.
Build, Tyres & Fuel Capacity
The tractor is fitted with durable front and rear tyres, ensuring stability and traction across various terrains. A large 60-litre fuel tank supports longer working hours without frequent refueling, increasing productivity in the field.
Features & Safety
Key features include PTO NSS (Neutral Safety Switch), underhood exhaust muffler, water separator, and oil-immersed axle with metal face seals for longer life. For operator safety, factory-fitted options like Roll Over Protection Structure (ROPS), deluxe seat, and seat belt are available. Additional accessories such as ballast weights, canopy, drawbar, and tow hook further enhance usability.
Engine capacity : → John Deere 5105 4WD is powered by a strong and efficient diesel engine that delivers excellent torque and fuel economy.
Engine Power: 40 HP (29.8 kW)
Rated Engine Speed: 2100 RPM
Drive Type: 4WD (Four Wheel Drive)
Air Filter: Dry type dual element
Clutch: Single / Dual clutch
This engine design provides consistent performance during heavy agricultural activities such as ploughing, cultivation, and haulage.
price : →The John Deere 5105 4WD price in India generally ranges between ₹7.5 lakh to ₹8.2 lakh (ex-showroom) depending on the state, dealer, and additional features.
