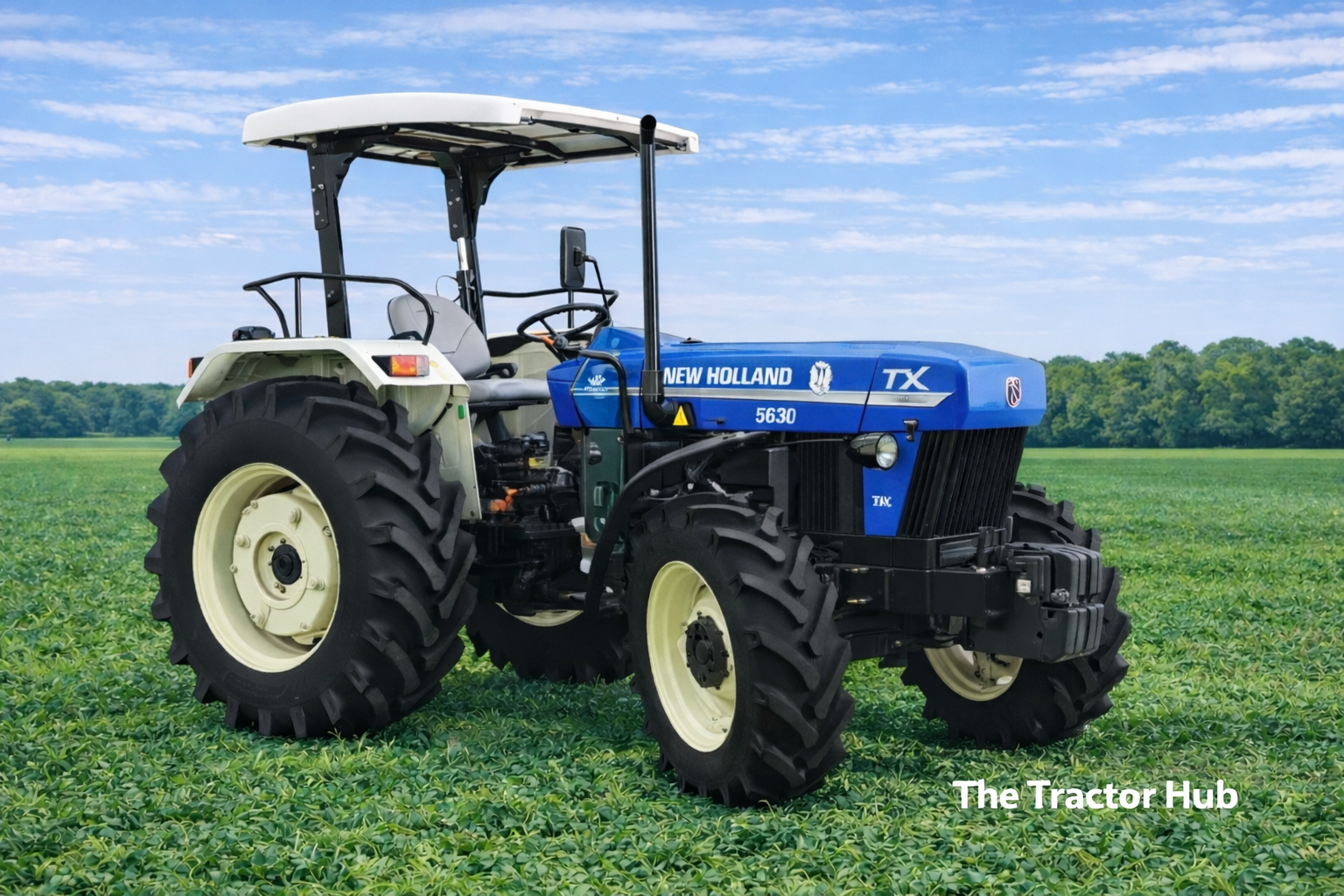

New Holland 5630 TX Plus TREM-IV 4WD

₹ From 15.25 Lakh*

Model - - - New Holland 5630 TX Plus

Price - - - ₹ From 15.25 Lakh*

Horse Power (HP) - - - 75 hp

Steering - - -Power Steering

Brakes - - - Oil Immersead Multi Disk Brake

Wheel Drive - - - 4 WD

Clutch - - - Dual / Double Clutch

New Holland 5630 TX Plus TREM-IV 4WD is a powerful and reliable tractor built for heavy farm operations and haulage work. It comes with a strong 55 kW (75 HP category) engine that delivers excellent performance, fuel efficiency, and durability in all field conditions. The Four Wheel Drive (4WD) system provides superior traction, better control, and higher productivity on tough or slippery terrain.

This tractor is equipped with a robust hydraulic system offering a 2000 kg lifting capacity, making it suitable for heavy implements like rotavators, cultivators, ploughs, and trailers. For enhanced safety and smooth stopping power, it features oil-immersed multi-disc brakes, ensuring longer brake life and reliable performance.

The New Holland 5630 TX Plus TREM-IV is an ideal choice for farmers who need power, stability, and efficiency in one machine.(New holland 3032 tx smart )

2000
Power Steering
Single clutch
Oil Immersead Multi Disk Brake
4 WD

Additional information

Overview

New Holland 5630 TX Plus TREM-IV 4WD is a high-performance tractor designed for demanding agricultural and haulage applications. Powered by a strong 55 kW (75 HP category) engine and delivering 69 HP PTO power, it ensures excellent output for heavy implements, threshers, and PTO-driven equipment. The 4WD system provides superior grip, stability, and better pulling capacity in wet, loose, or uneven fields.

With a maximum speed of 32.07 km/h, the tractor is efficient for both farm operations and transport work. It comes equipped with oil-immersed multi-disc brakes for reliable stopping power, longer service life, and safer operation.
Operator comfort and productivity are enhanced with the side-shift gear position for easy access and smoother shifting. Utility features like remote valves (up to 4 ports) allow the use of advanced hydraulic implements, while the swinging drawbar improves towing flexibility. For safety and convenience, the tractor includes ROPS with canopy and front fenders.

Engine capacity

New Holland 5630 TX Plus TREM-IV 4WD is a powerful and advanced tractor built for heavy-duty farming and commercial use. It is powered by the FPT S8000 Series 12-valve HPCR engine featuring High Pressure Common Rail (TREM IV) technology for better fuel efficiency, higher torque, and cleaner emissions. With 55 kW (75 HP category) at 2300 RPM, this tractor delivers strong field performance and excellent pulling power.
The robust hydraulics offer a 2000 kg lifting capacity, making it ideal for operating heavy implements like rotavators, ploughs, and cultivators. The 4WD system ensures superior traction, stability, and productivity in all types of terrain.

Price

New Holland 5630 TX Plus TREM-IV 4WD price starts from ₹15,25,000 (ex-showroom). The final on-road price may vary depending on RTO registration charges, insurance, and individual state tax policies. For the exact price in your area, please contact your nearest New Holland dealer.

New Holland 5630 TX Plus TREM-IV 4WD Specification.

New Holland 5630 TX Plus TREM-IV 4WD Engine

Horse power (hp) - - - 75 hp

PTO (Hp) - - - 69

No. Of Cylinder- - - 4

Engine Rated RPM - - - 2300

Clutch - - - Dual / Double Clutch

Brakes - - - Oil Immersead Multi Disk Brake

Gear Box - - - 12F+3R UG /12F+3R Creeper Gearbox

Lifting Capacity - - - 2000

Clutch - - - Single clutch

Gear box - - - 12F+3R UG /12F+3R Creeper Gearbox

Battery - - -12 V100 Ah

Alternator - - - 55 Amp

Forward Speed - - - 32.07 kmph

Reverse Speed - - - 16.21 kmph

Brakes - - - Oil Immersead Multi Disk Brake

Tyepe - - - GSPTO/ RPTO (RPTO with UG Gear Box Only)

PTO Type - - - GSPTO/ RPTO (RPTO with UG Gear Box Only)

RPM - - - 540 r/min

Fuel capacity - - - 70

Lifting capacity - - -2000

Total weight - - - 2835

Overall Length - - - 3780

ground Clearance - - - 435

Wheel Base - - - 2045

Overall Width - - - 2000

Wheel Drive - - - 4 WD

Front Tyre - - - 12.4 x 24

Rear tyre - - - 18.4 x 30

Warranty - - - 6 Year T warranty

Status - - - Launched

New Holland 5630 TX Plus TREM-IV 4WD FAQs . . . ❓

What is the price of New Holland 5630 TX Plus TREM-IV 4WD. ?

New Holland 5630 TX Plus TREM-IV Price Start From ₹ From 15.25 Lakh* (ex-showroom).

New Holland 5630 TX Plus TREM-IV come with 75 HP.

New Holland 5630 TX Plus TREM-IV 435mm (17.13 inches)

New Holland 5630 TX Plus TREM-IV has side shift gear leaver position.

New Holland 5630 TX Plus TREM-IV has Oil Immersead Multi Disk Brake.

New Holland 5630 TX Plus TREM-IV come with dual clutch system.

New Holland 5630 TX Plus TREM-IV 4WD has 540 + GSPTO/ RPTO (RPTO with UG Gear Box Only).

New Holland 5630 TX Plus TREM-IV 4WD is a high hp tractor (75hp) 8 feet rotavator and large farm equipment.
