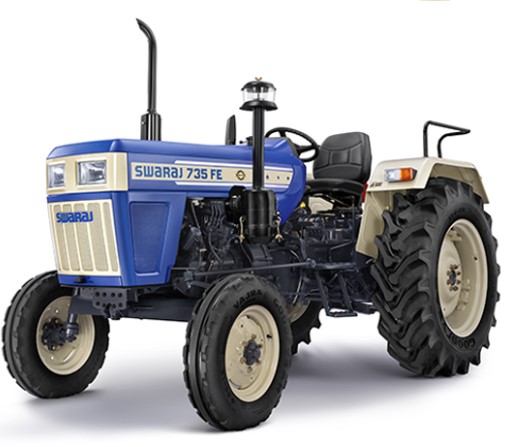

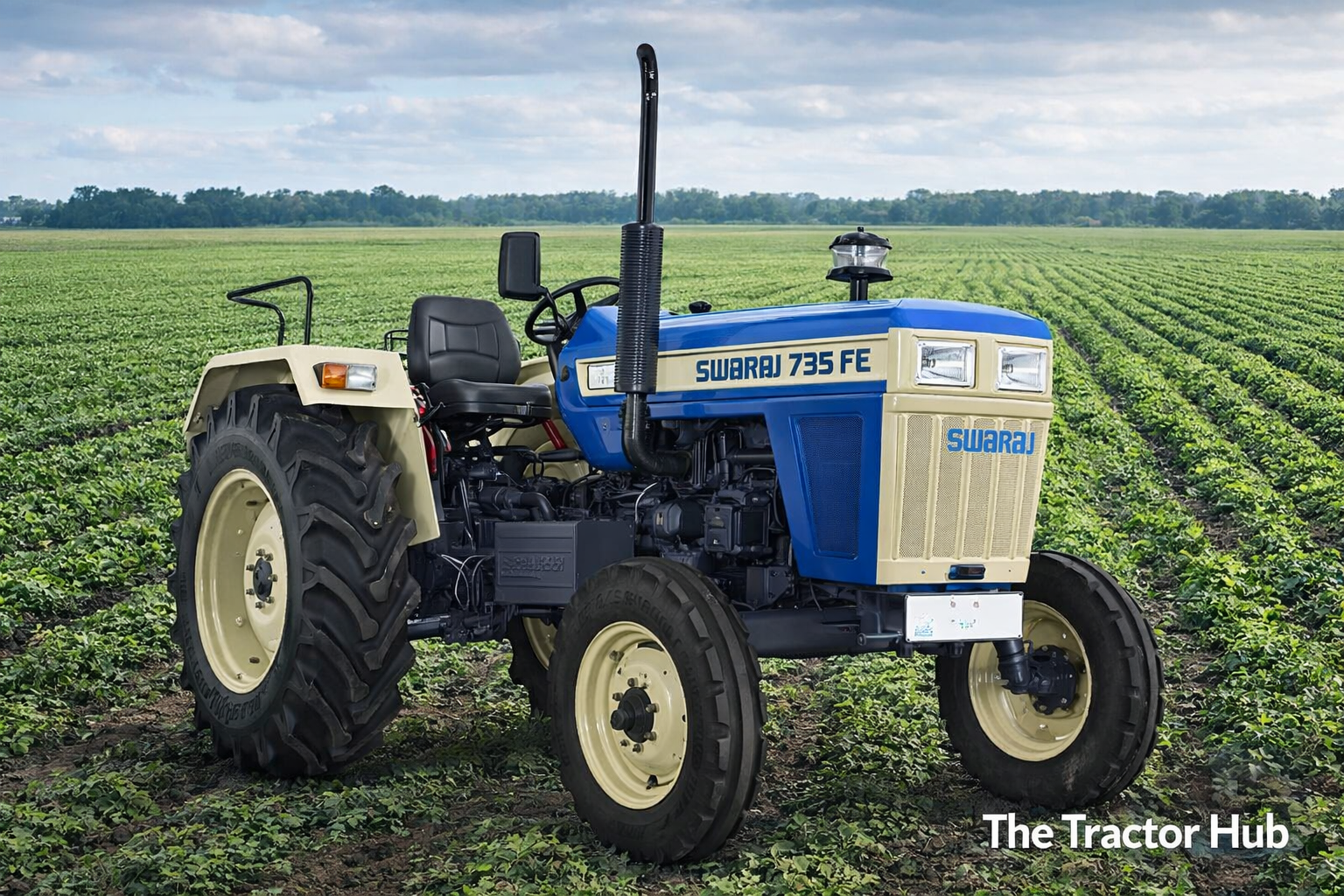

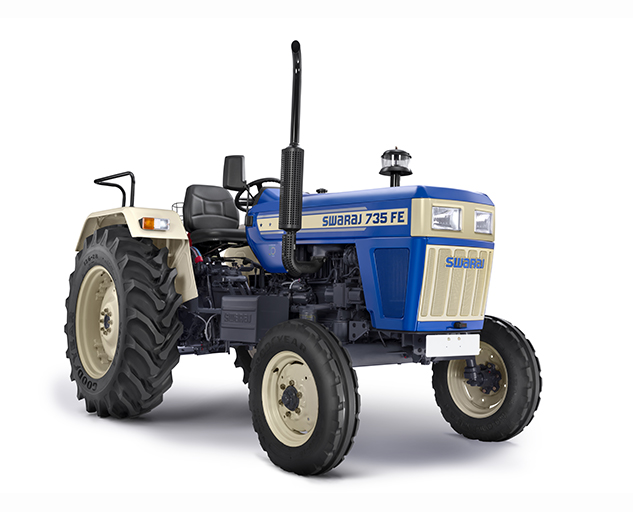

Swaraj 735 FE
Swaraj 735 FE - Image 2
Swaraj 735 FE - Image 3

Swaraj 735 FE

₹ From. 5.83-6.18 Lakh*

Model - - - Swaraj 735 FE

Price - - - ₹ From. 5.83-6.18 Lakh*

Horse Power (HP) - - - 39 hp

Steering - - - Power / Mechanical*

Cubic Capacity (CC) - - - 2734

Brakes - - - Dry Brakes / Oil brakes

Wheel Drive - - - 2 WD

Clutch - - - Single Clutch

Swaraj 735 FE 2WD is a reliable 35 HP tractor designed for efficient farming and transport work. It is powered by a 3-cylinder, 2734 cc diesel engine that delivers strong performance at 1800 RPM, making it suitable for cultivation, ploughing, and haulage operations. The tractor features an 8 Forward + 2 Reverse gearbox that ensures smooth gear shifting and better control in the field.

Equipped with 540 PTO and up to 1650 kg hydraulic lifting capacity, the Swaraj 735 FE can easily operate implements like rotavators, cultivators, and seed drills. Its oil-immersed brakes, mechanical or optional power steering, and durable transmission system provide better safety, comfort, and long-term reliability.

1650
Power / Mechanical*
Single clutch
Dry Brakes / Oil brakes
2 WD

Additional information

Overview

The Swaraj Tractors Swaraj 735 FE 2WD is a dependable and fuel-efficient tractor widely trusted by farmers for everyday agricultural operations. Designed for durability and performance, this tractor is suitable for tasks such as cultivation, ploughing, rotavation, and haulage. It comes with a 2WD front axle drive, providing good traction and stability for various field conditions.
The tractor is equipped with a Sliding Mesh / PCM gearbox featuring 8 Forward + 2 Reverse gears, with both centre shift and optional side shift options for convenient operation. Its single clutch system ensures smooth transmission performance, while the 540 PTO allows efficient use of implements like rotavators, seed drills, and threshers.
For better control and safety, the Swaraj 735 FE includes oil-immersed brakes and mechanical steering with optional power steering, making handling easier during long working hours. The tractor also features a digital instrument cluster meter, providing clear and accurate information to the operator. With a maximum hydraulic lifting capacity of 1650 kg, it can easily handle a wide range of agricultural implements, making it a reliable partner for modern farming.

Engine Capacity

The Swaraj Tractors Swaraj 735 FE 2WD is powered by a durable 39 HP, 3-cylinder, 2734 cc diesel engine designed to deliver strong performance and excellent fuel efficiency. The engine runs at a rated speed of 1800 RPM, providing consistent power and better torque for heavy agricultural operations. Its robust engine design ensures smooth functioning, reliable output, and long engine life during extended working hours. This powerful engine setup makes the tractor well-suited for tasks such as ploughing, cultivation, rotavation, and transportation, making it a dependable choice for farmers.

Price

Price Starting From ₹5,83,000 (Ex-Showroom)*
On-road price may vary depending on state taxes, RTO charges, and insurance costs.
For exact on-road price details, contact your nearest dealer.

Swaraj 735 FE Specification.

Swaraj 735 FE Engine

Horse power (hp) - - - 39 hp

PTO (Hp) - - - 32.6

No. Of Cylinder- - - 3

Engine Rated RPM - - - 1800

Clutch - - - Single Clutch

Brakes - - - Dry Brakes / Oil brakes

Gear Box - - - 8 Forward + 2 Reverse

Lifting Capacity - - - 1650

Clutch - - - Single clutch

Gear box - - - 8 Forward + 2 Reverse

Battery - - - 12 V 80 Ah

Alternator - - - Starter motor

Forward Speed - - - 2.30 - 27.80 kmph

Reverse Speed - - - 2.73 - 10.74 kmph

Brakes - - - Dry Brakes / Oil brakes

Steering - - - Power / Mechanical*

Column type - - - Single drop arm

PTO Type - - - Mechanical/ Power both option available

RPM - - - 540 r/min

Fuel capacity - - - 40

Lifting capacity - - -1650

Point linkage - - - 3 Point Linkage

Overall Length - - - 3450

Wheel Base - - - 2090

Overall Width - - - 1780

Wheel Drive - - - 2 WD

Front Tyre - - - 6.00 x 16

Rear tyre - - - 13.6 x 28

Warranty - - - 6 Year

Accessories - - - Tools, Top Link

Status - - - Launched

Swaraj 735 FE FAQs . . . ❓

What is the price of Swaraj 735 FE. ?

Swaraj 735FE price is From: 5,83,000 Lakh* (ex-showroom)

The Swaraj 735FE tractor is come with 31 HP-40 HP HP Engine.

Ground clearance of swaraj 735FE is 380 MM.

Swaraj 735FE has center and side both Gear position option available.

Swaraj 735FE has Oil Immersed brakes

Swaraj 735FE has single and double both clutch system option available .

Standard 540 r/min @ Engine (r/min) - 1800

Swaraj 735FE is 31-40 hp Category tractor so 6-7 feet rotavator suitable for this tractor.
